SPECIFICATIONS

Brake Type: Disc Brake

Brand Name: KUNTENG E-BIKE

Certification: CE

Conversion: Ebike Motor

Design: Brushless

Hign-concerned Chemical: None

Motor Type: Brushless Non-gear Hub Motor

Origin: Mainland China,Made in China

Power: 1000W-2000W

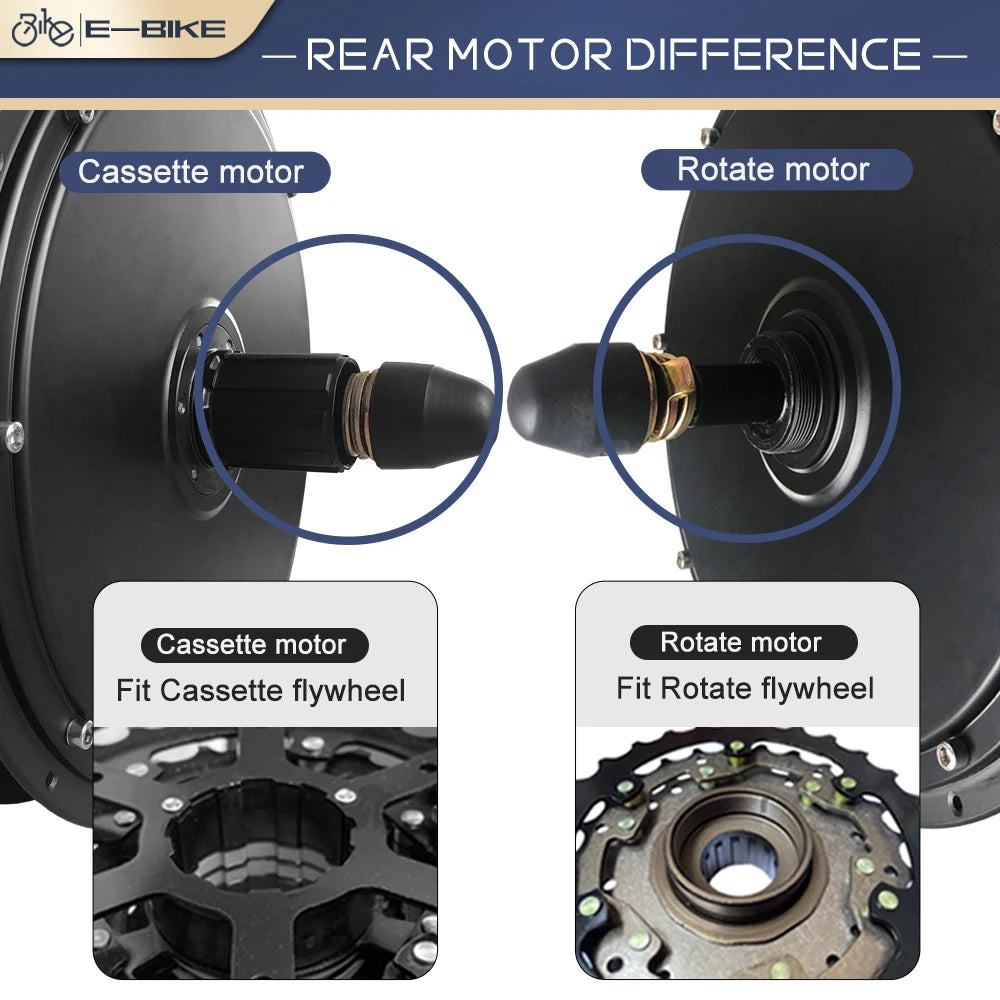

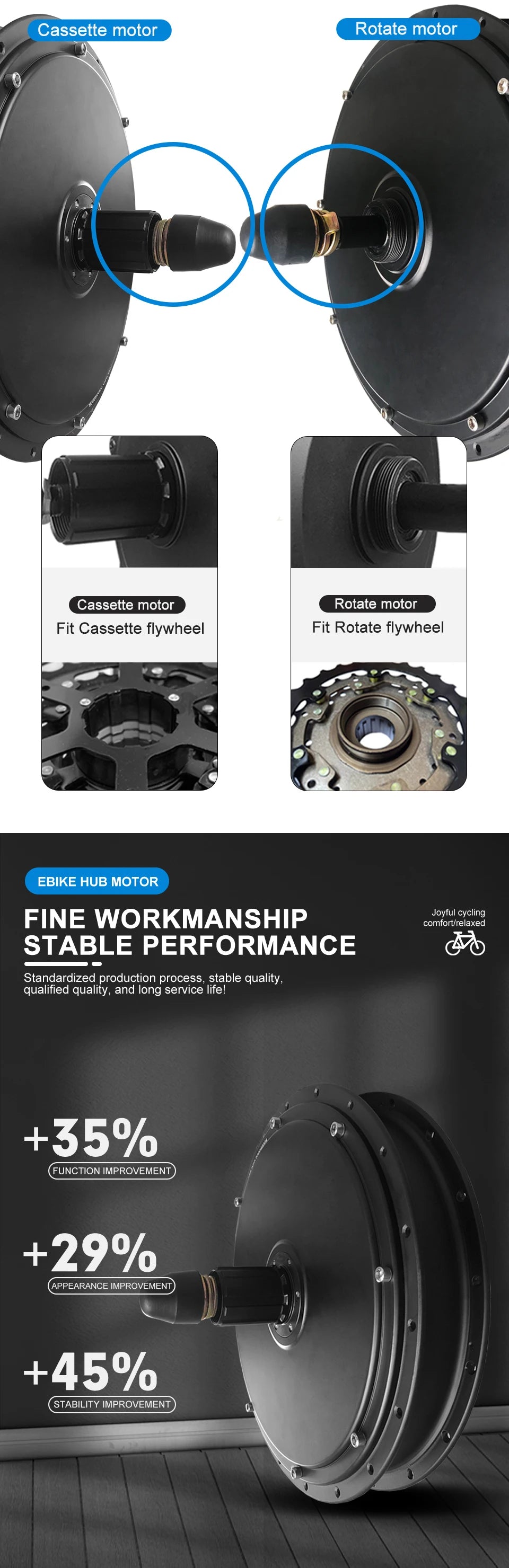

Rear Fork cassette: 142mm

Rear Fork rotate: 135mm

Use: Electric Bicycle Conversion Kit

Voltage: 48V,48V

Wattage: > 400w

Wheel Size (inch): 20/24/26/27.5/28/29 Inch700C

front fork: 100mm

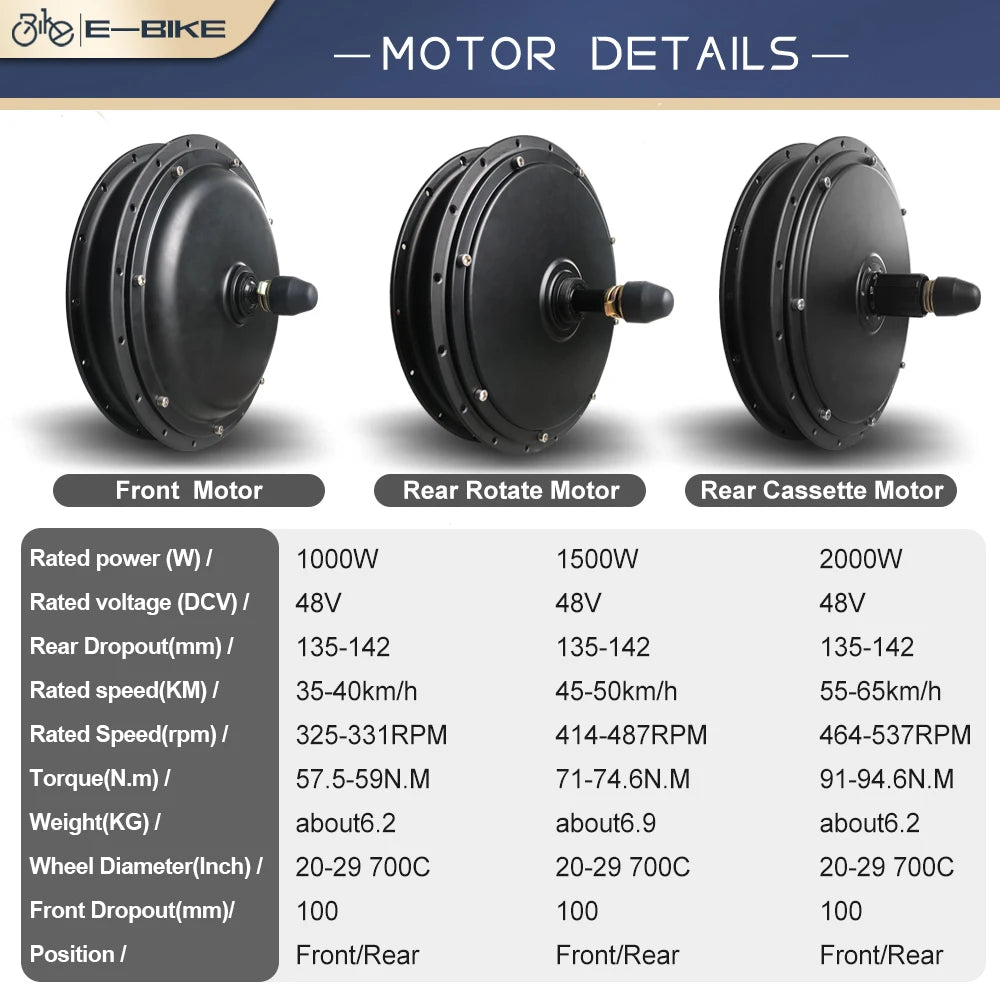

48V 1000W

Wheel Diameter (Inch): 20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gearless drive

Rated Voltage (DCV): 48

Rated Power (W): 1000

Max Speed (KM/H): 40-45

Speed (Rpm): 325-331

Torque (N.M): 57.5-59

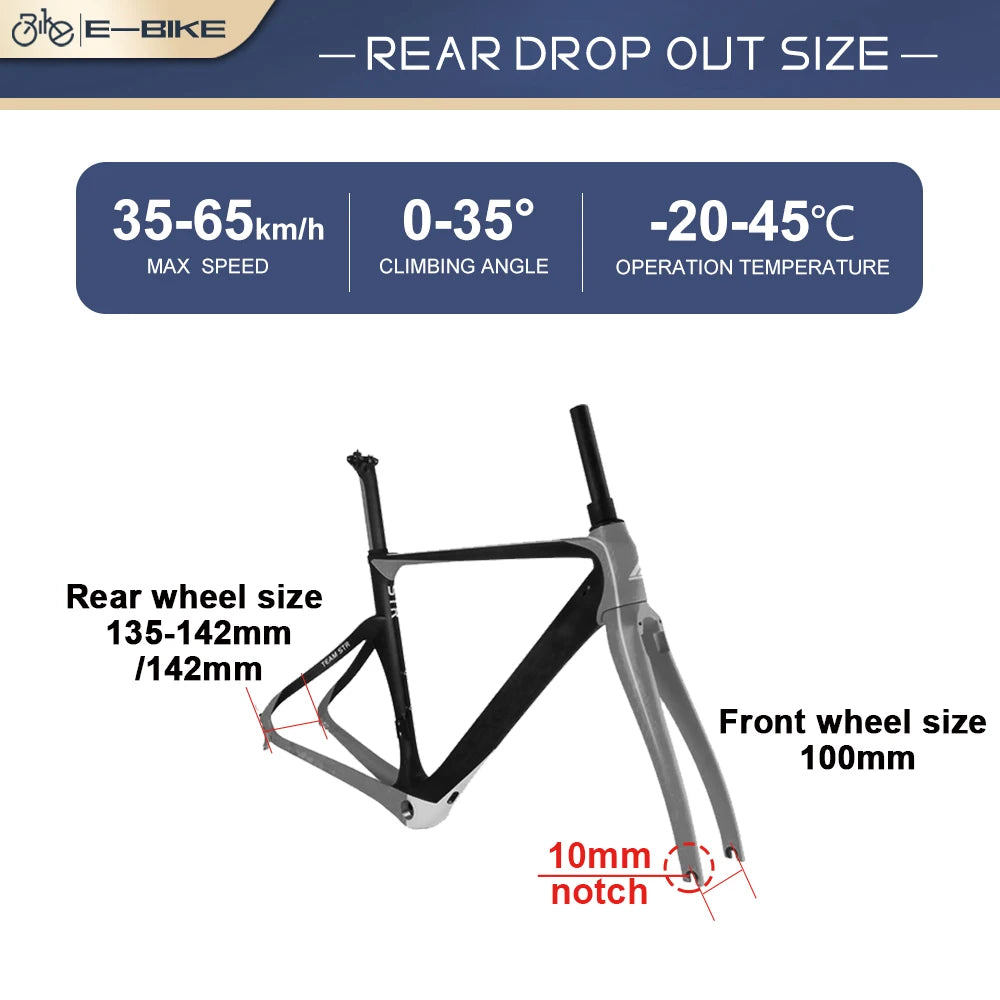

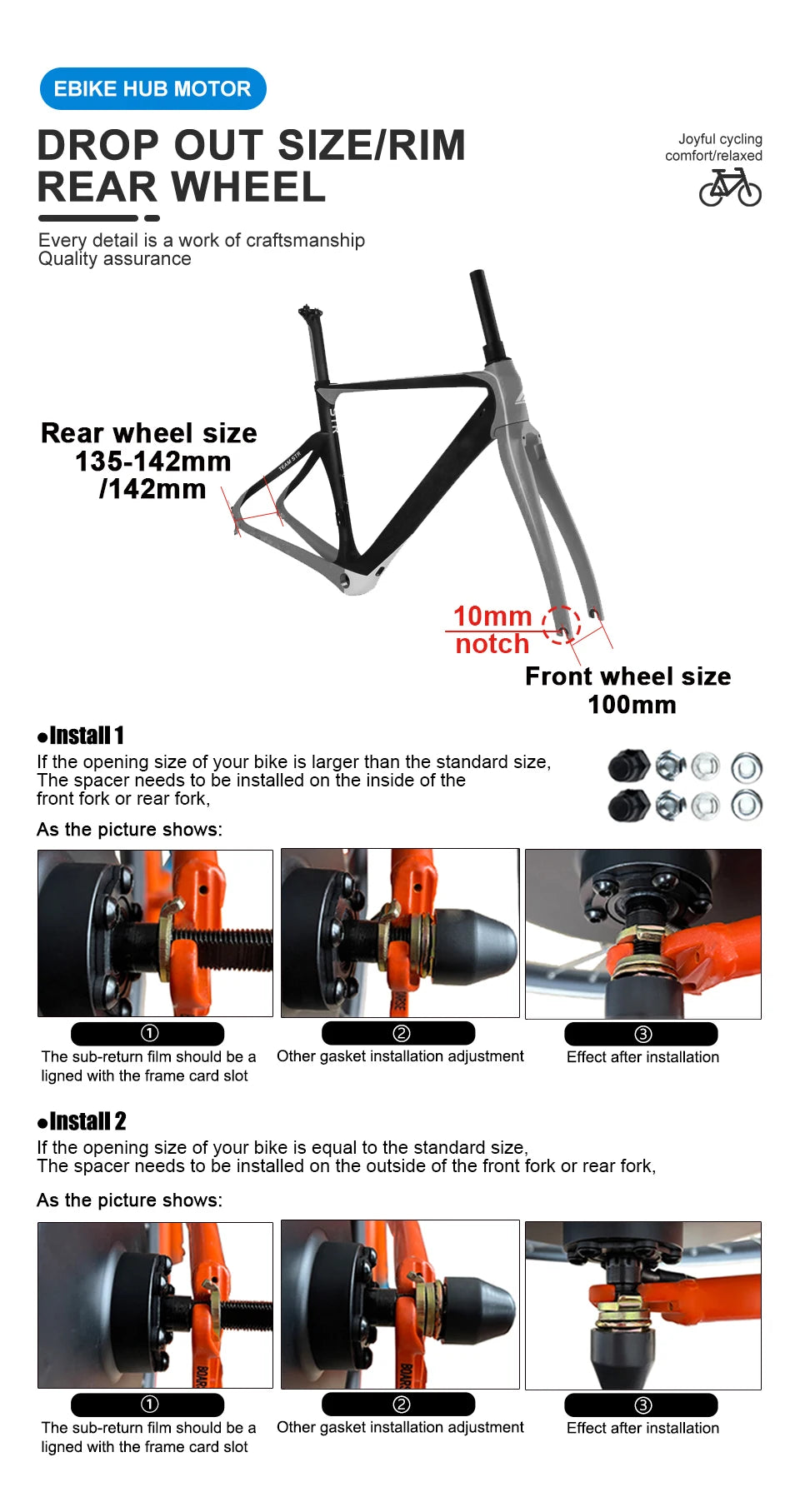

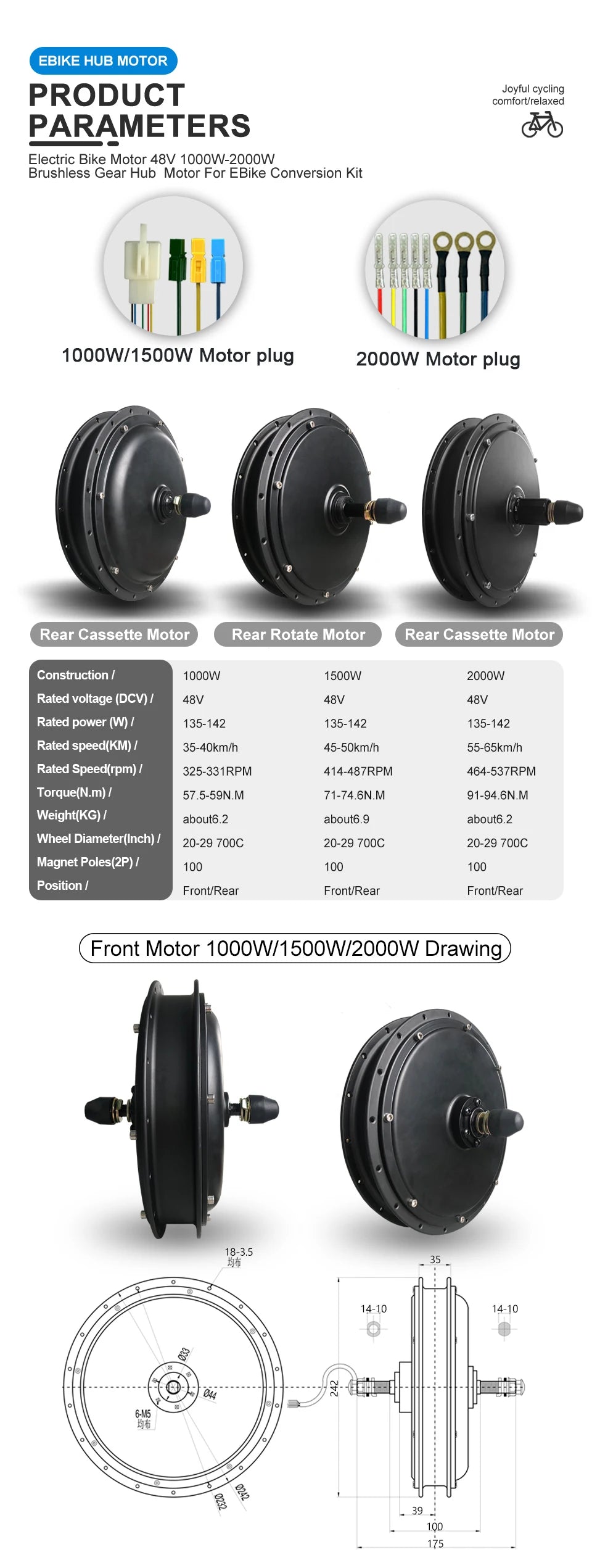

Front drive open size (mm):100

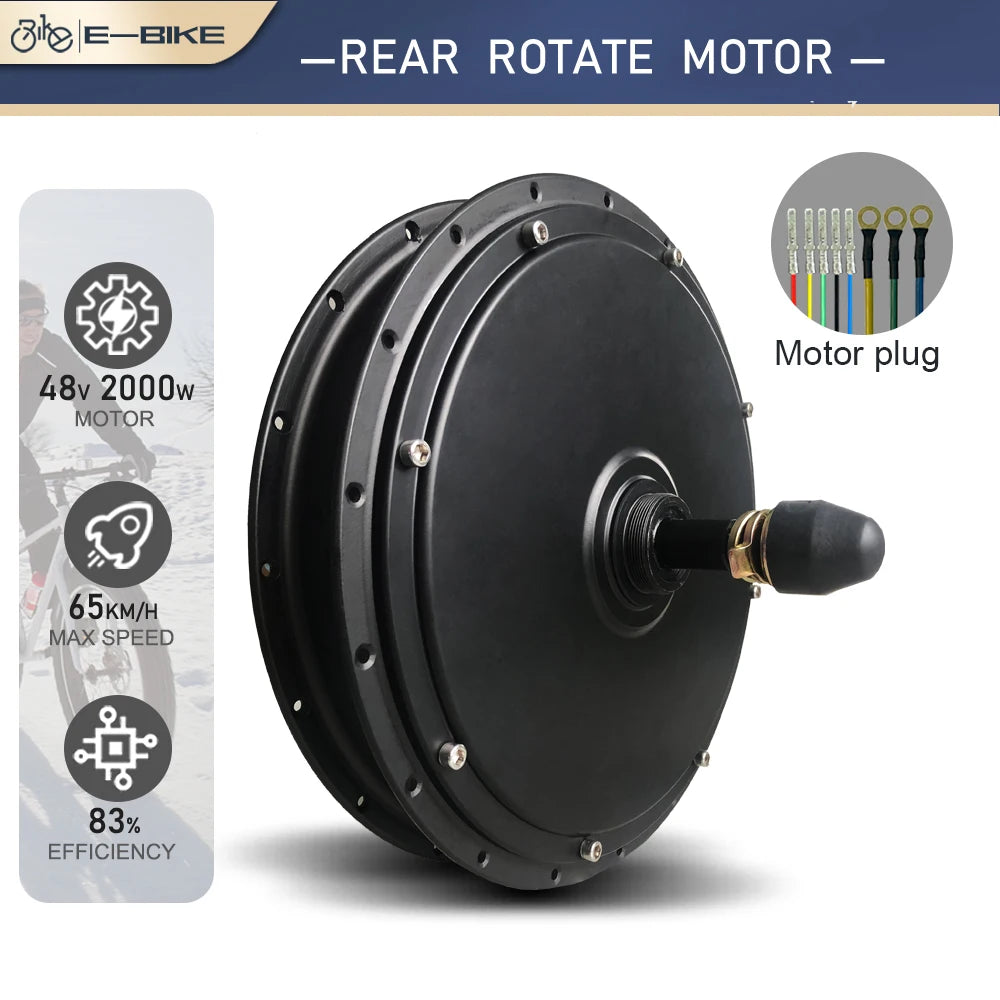

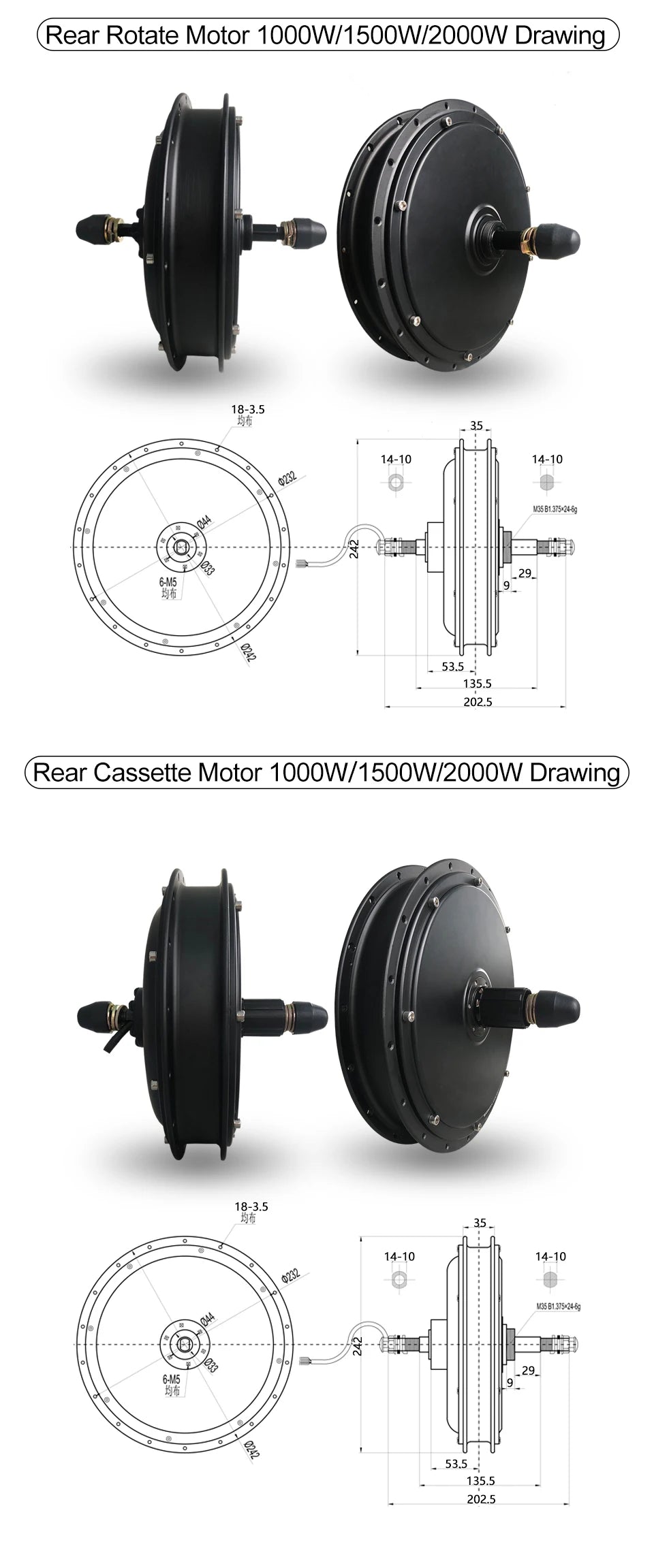

Rear Rotate drive open size (mm):135-142

Rear Cassette drive open size (mm):142

Magnet height (48V): 30H

Number of magnet poles: 46

Efficiency (%)≥ 80

Color: Black

Weight (kg): 6.2kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Rim: Double-wall Aluminium Alloy Rim

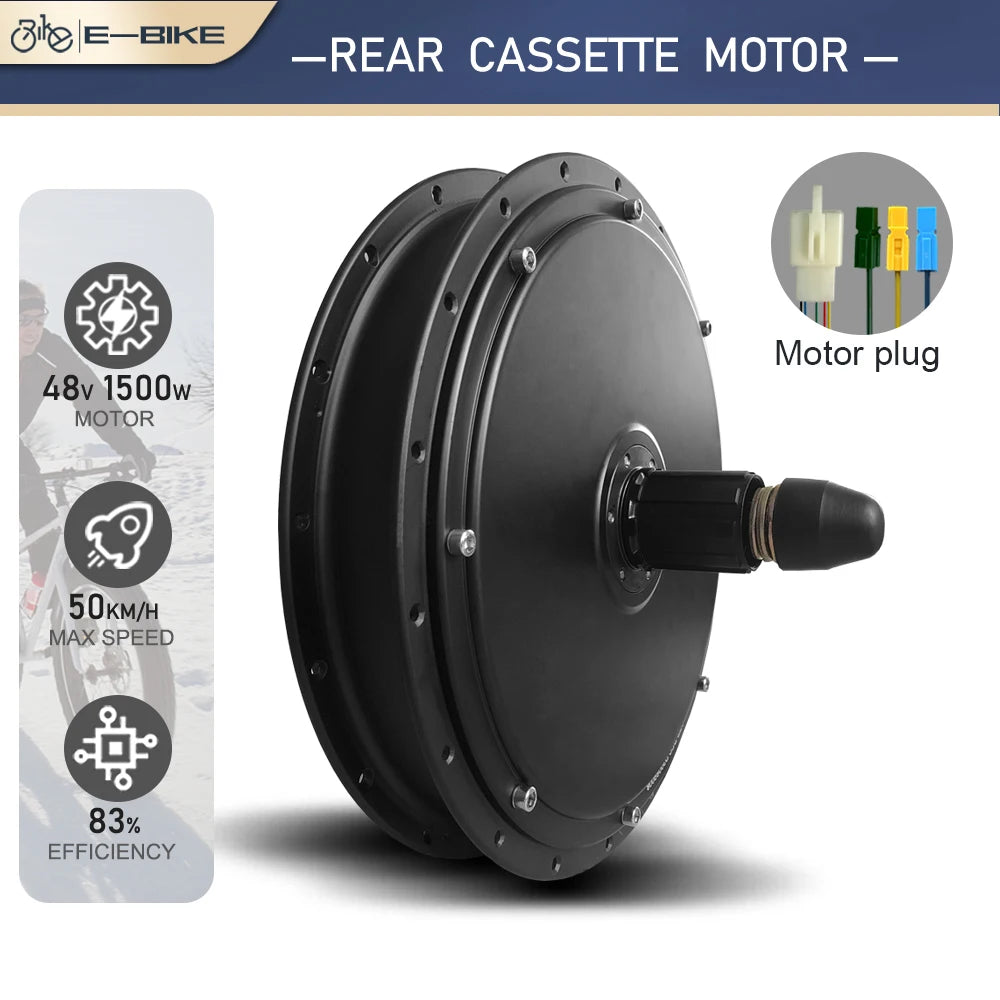

48V 1500W

Wheel Diameter (Inch): 20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gearless drive

Rated Voltage (DCV): 48

Rated Power (W): 1500

Max Speed (KM/H): 45-50

Speed (Rpm): 414-487

Torque (N.M): 71-74.6

Front drive open size (mm):100

Rear Rotate drive open size (mm):135-142

Rear Cassette drive open size (mm):142

Magnet height (48V): 30H

Number of magnet poles: 46

Efficiency (%)≥ 80

Color: Black

Weight (kg): 6.2kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Rim: Double-wall Aluminium Alloy Rim

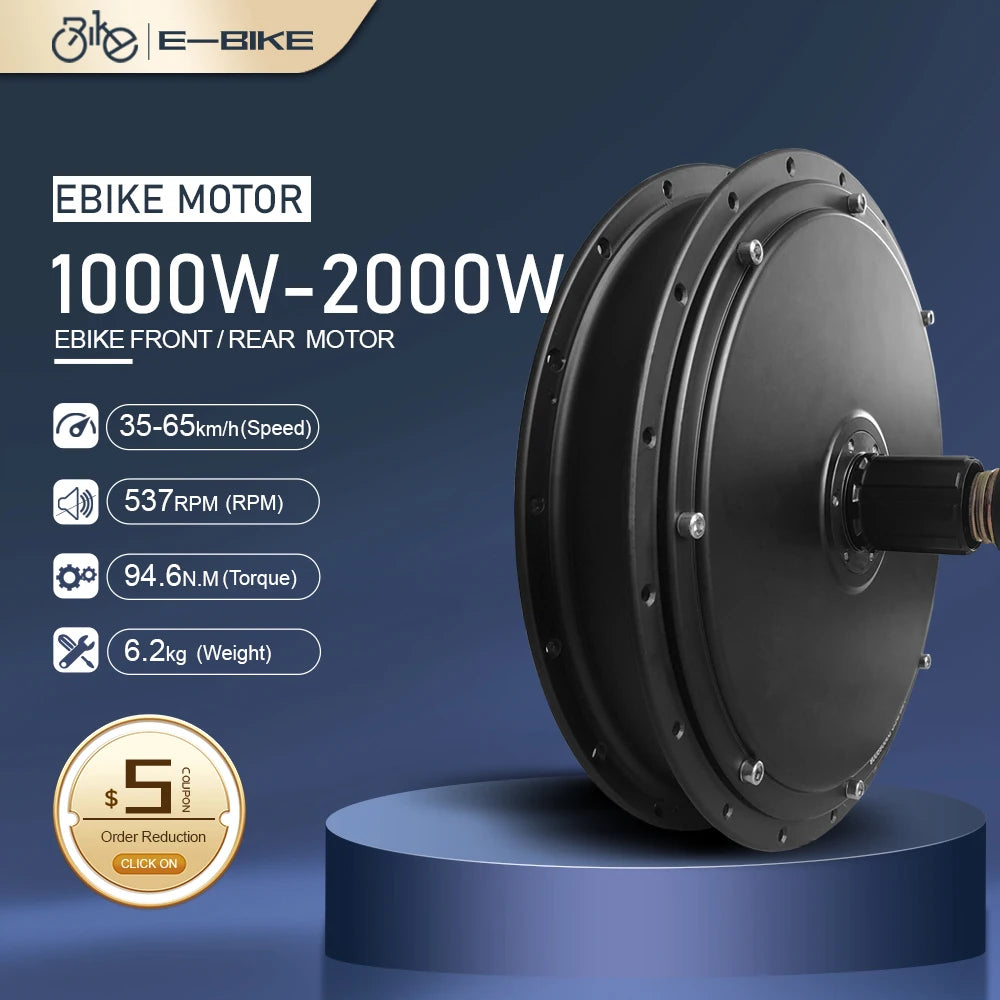

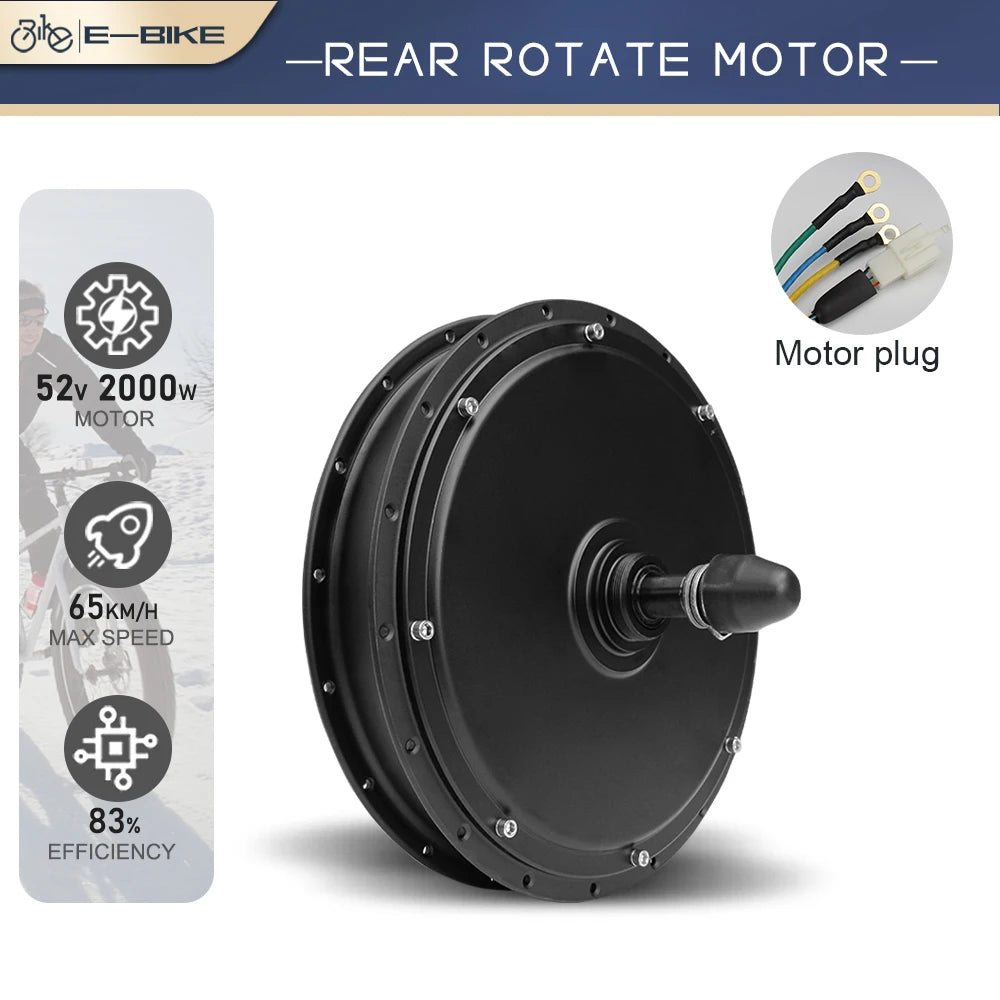

48V 2000W

Wheel Diameter (Inch):20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gearless drive

Rated Voltage (DCV):48

Rated Power (W):2000

Max Speed (KM/H):55-65

Speed (Rpm): 464-537

Torque (N.M): 91-94.6

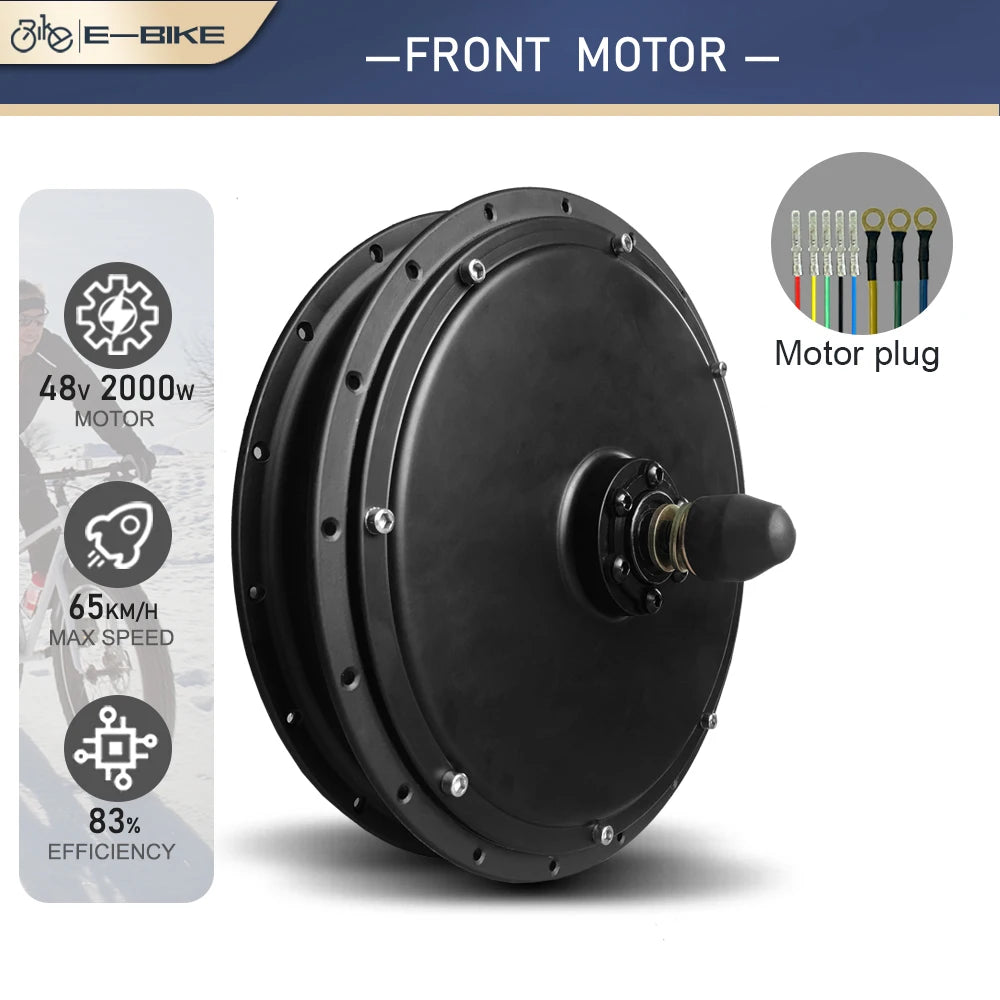

Front drive open size (mm):100

Rear drive open size (mm):135-142

Efficiency (%)≥ 80

Color:Black

Weight (kg):7kg

Noise Grade (dB)< 55

Operating Temperature:-20-45℃

Rim:Double-wall Aluminium Alloy Rim
