【Buyer’s Guide (Note)】

■ After placing the order, please leave the wheel size you need below:16" 20" 24" 26" 27.5" 28" 29" 700C

The motor requires 36V or 48V, please leave a message when ordering (these options are free).

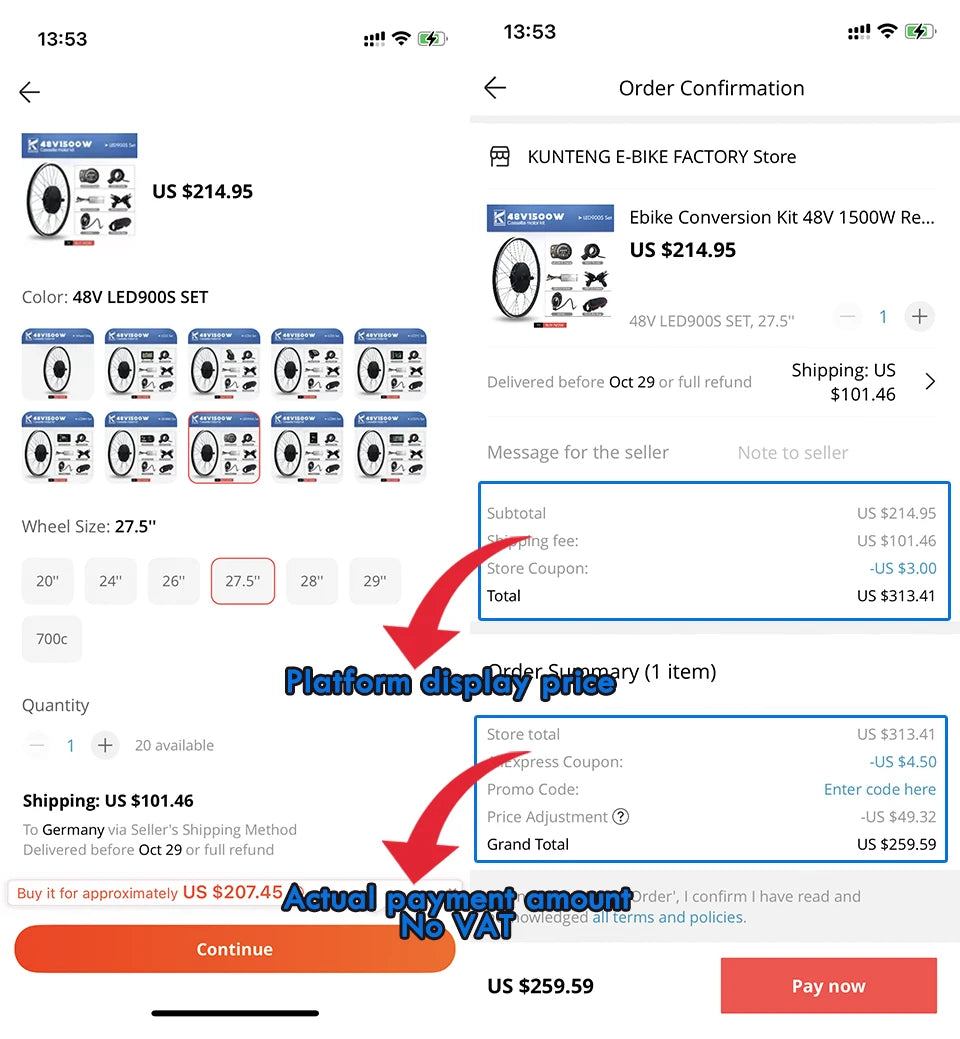

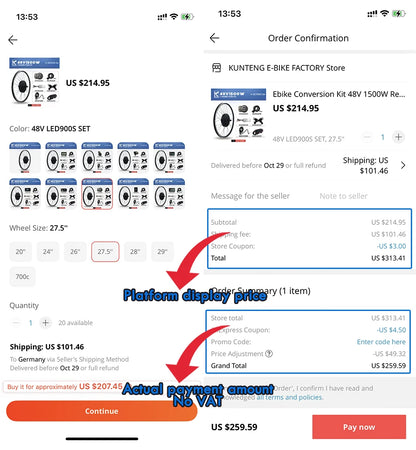

■ EU/UK/RU/US/AU/CA : NO TAX

Other countries: You can indicate the tax requirements on the order or leave me a message.

【About transportation】

■ Our motor kits are mainly transported byChina-Europe Railway + UPS special line, and some countries/regions use online transport;

■ If you want to receive the goods faster, we can choose air transportation for you, but you need to pay additional freight;

■ If your area is remote, we will charge you a certain amount of remote service fee.

■ If your address is on an island, please contact us before ordering so that we can check if we can arrange delivery for you.

Our default shipping method is rail/sea + UPS, if you want to receive the goods faster, we can send you air transportation, the time is 15-20 days, the following is the air freight difference link：

【Note】

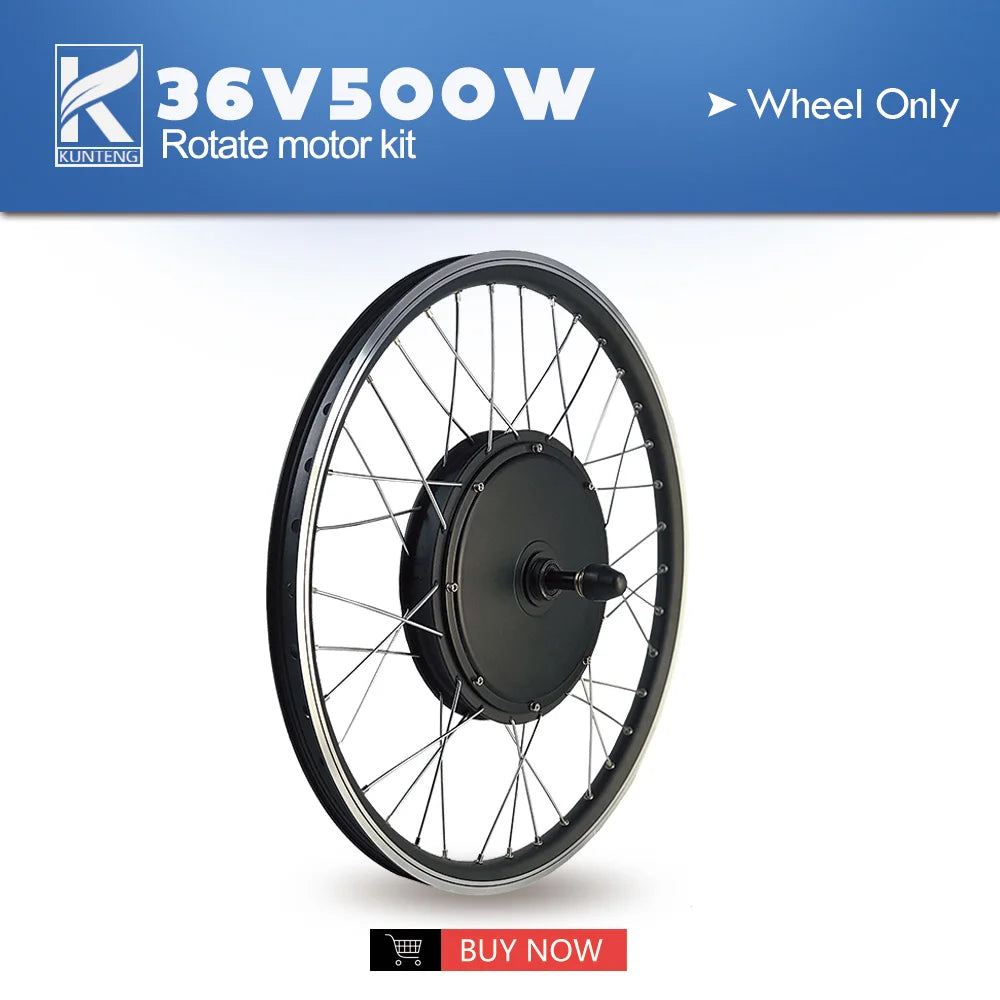

■ The conversion kitdoes not include batteries,freewheel,tires, disc brakes, and Torque Arm Amplifier.(If you need batteries,freewheel,tires, disc brakes, Torque Arm Amplifier, please contact us for additional costs) If you choose "wheels only", there is only one electric wheel, without any other accessories;

■ If youneedFreewheel,Disc brake, Torque Arm Amplifier, there is a link to make up the difference at the bottom of the details page, or please contact us;

■ PAS, Throttle, and E-brake in the kit are optional. If you need to replace it, please see the link to make up the difference at the bottom of the details page, or please contact us.

■ Please refer to the list form for packaging products.

【Product Features】

This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.

【E-bike Conversion Kit Paramater】

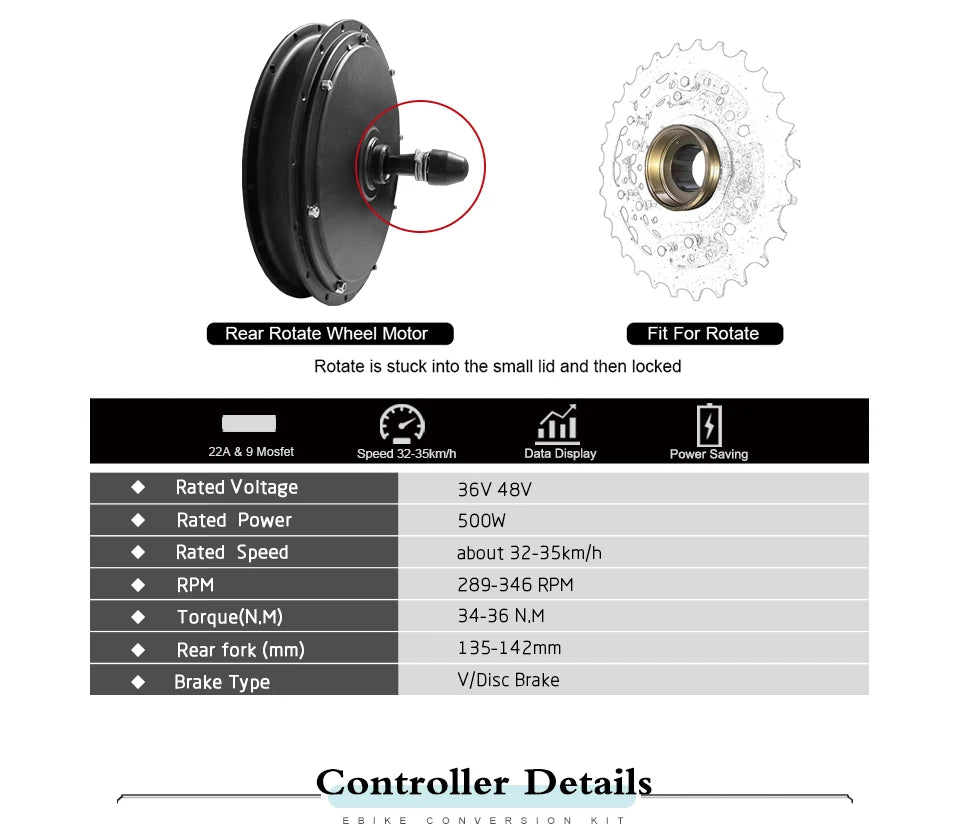

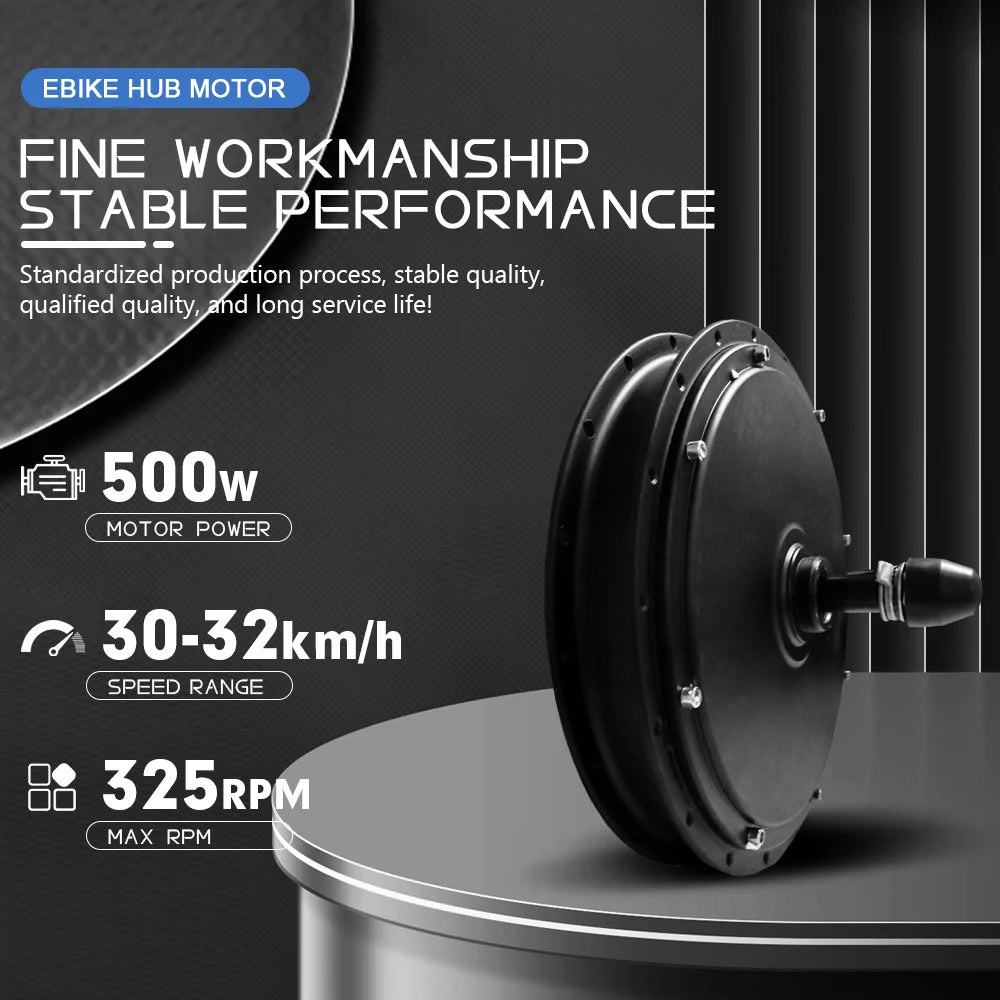

Motor：

●Rated Voltage：36V48V

●Rated Power：500W

●Rated Speed：about 32-35km/h

●RPM：289-346 RPM

●Torque(N.M)：34-36 N.M

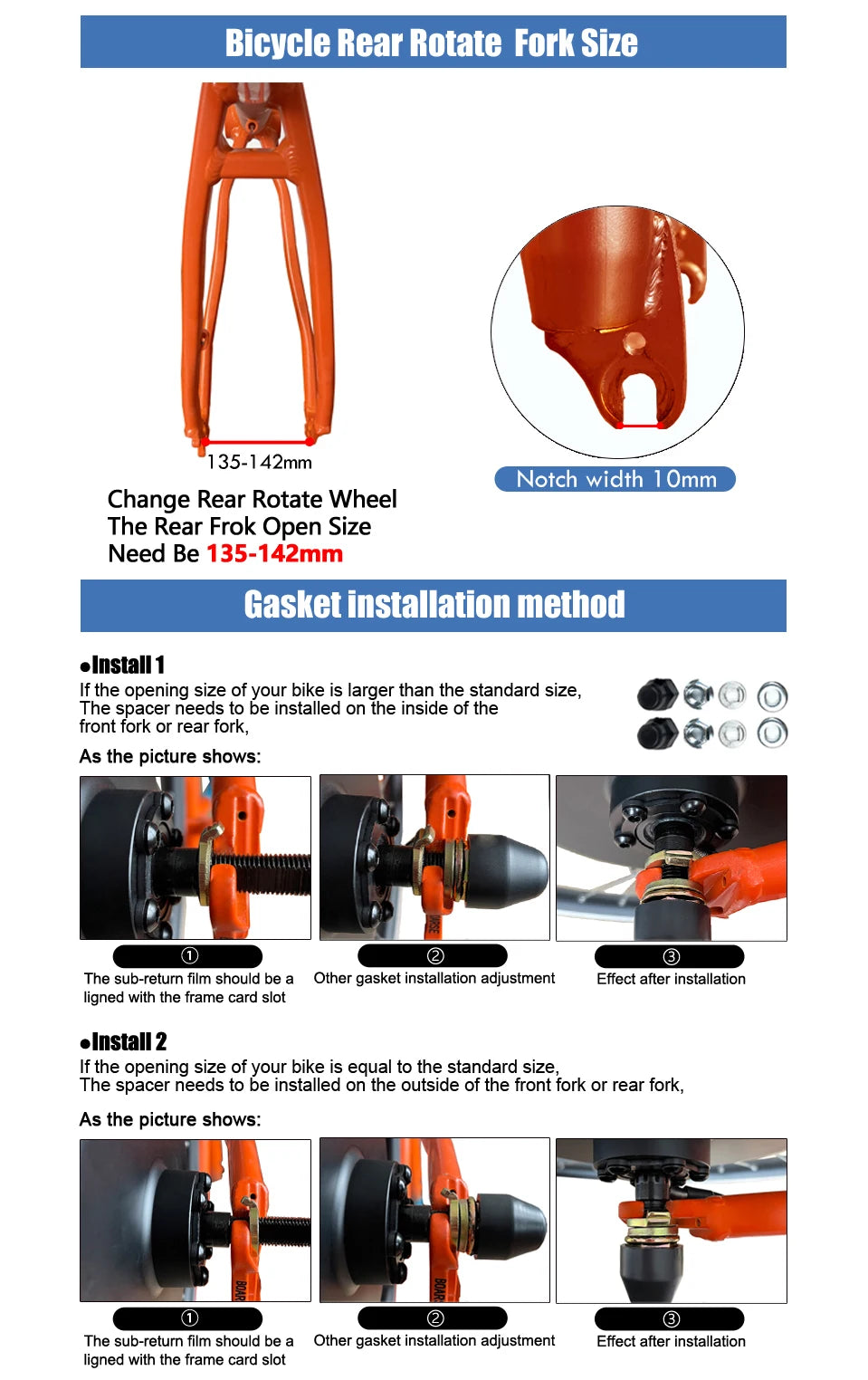

●Rear Fork(mm)：135-142mm

●Brake Type：V/Disc Brake

●Type：Brushless gearless hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

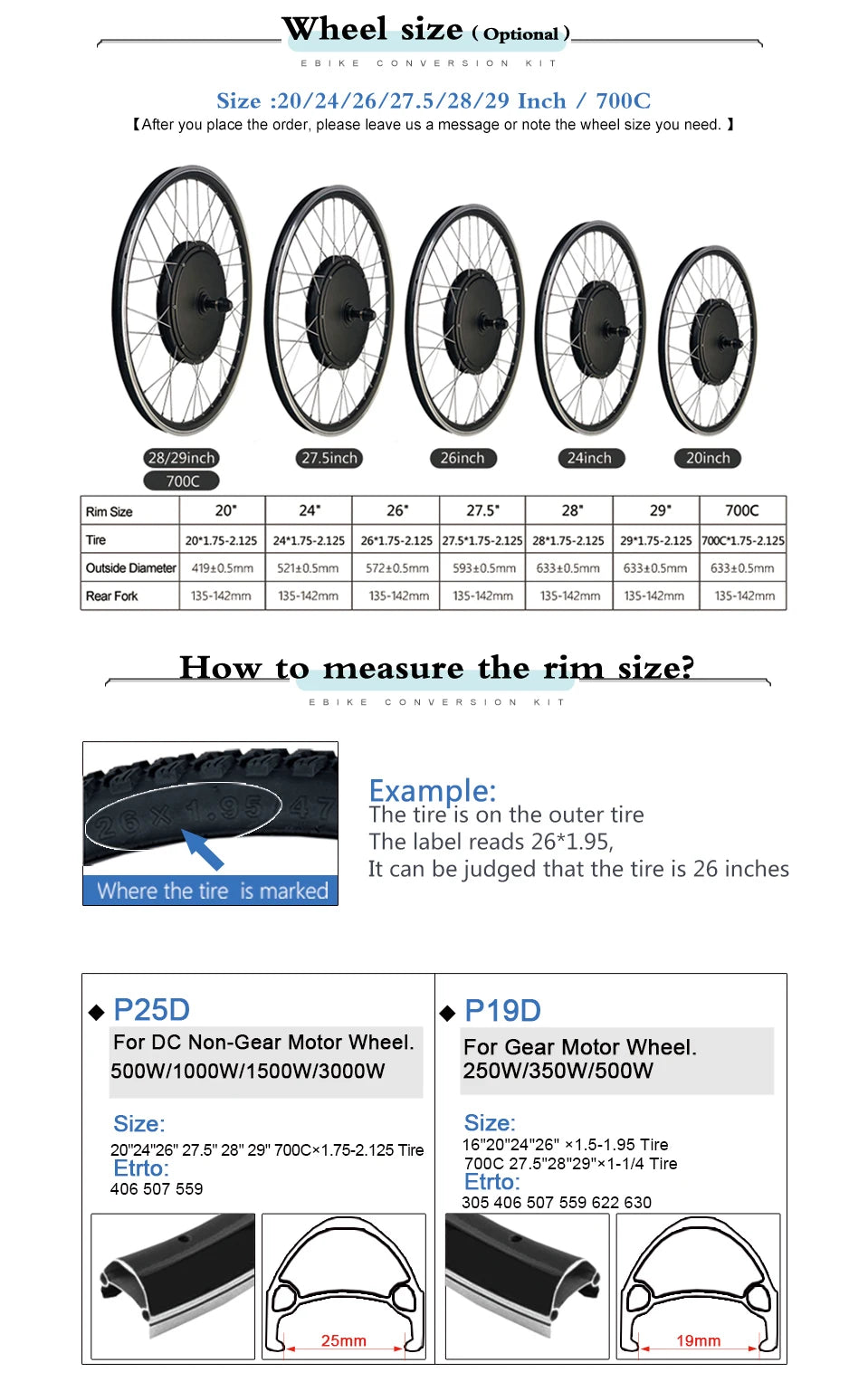

●Wheel size：20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

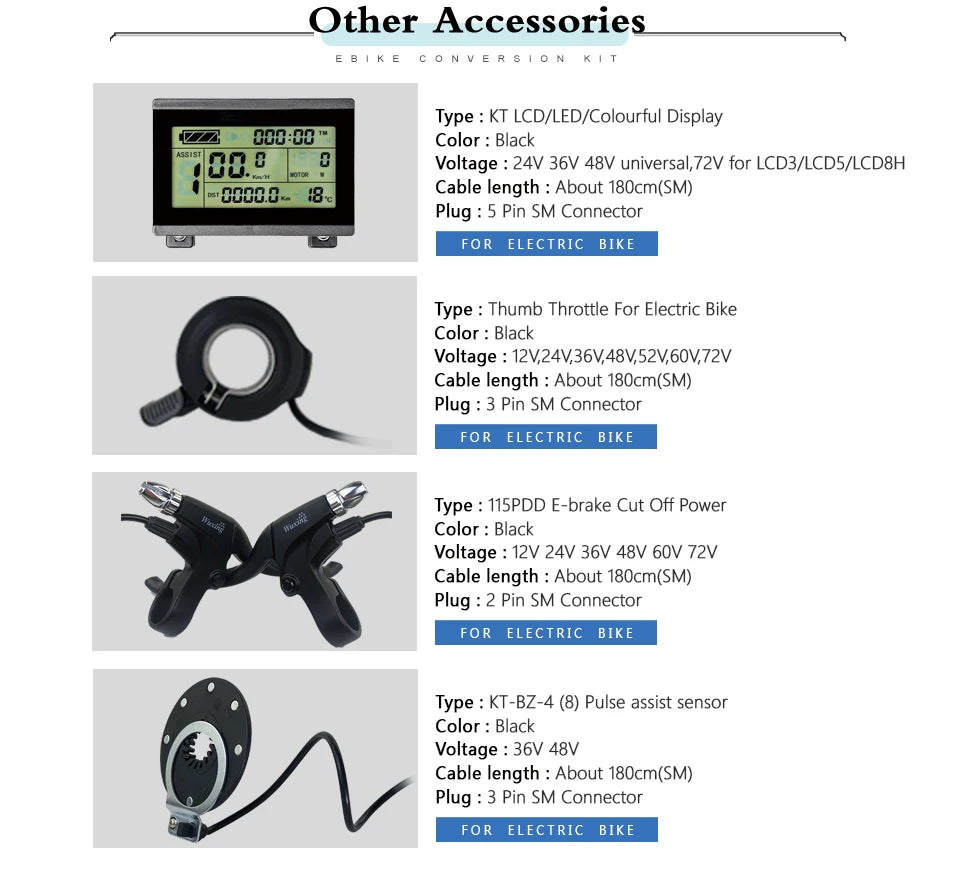

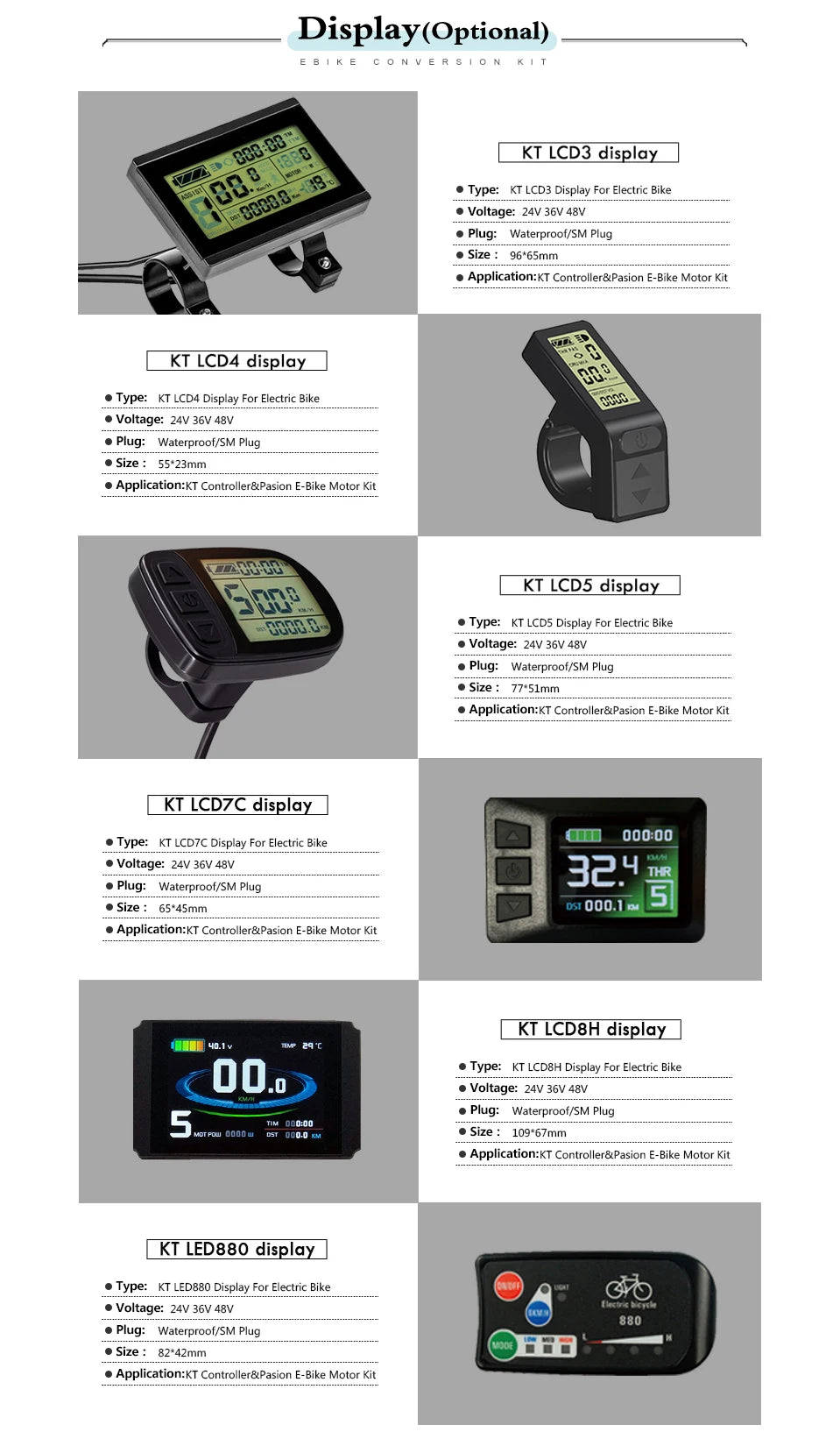

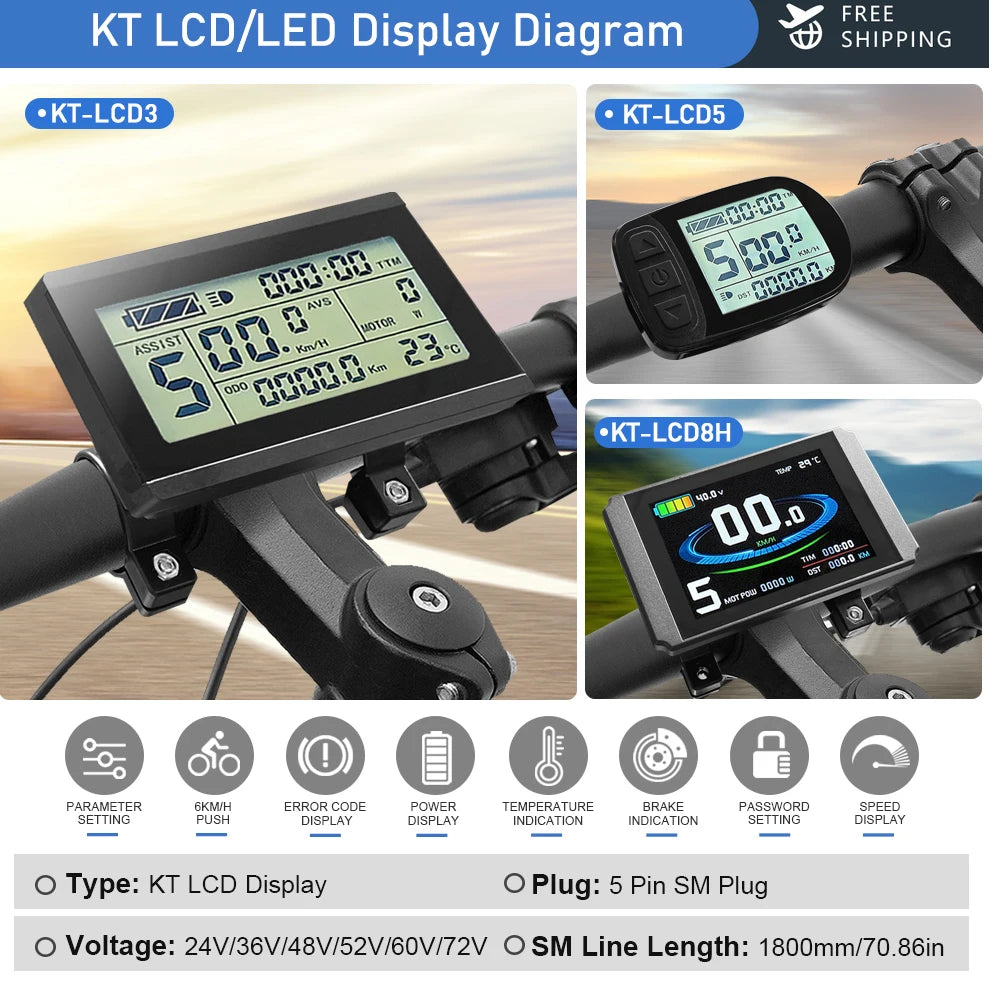

Display（Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :36V 48V universal

●Cable length :About 180cm(SM)

●Plug :5 Pin SM plug

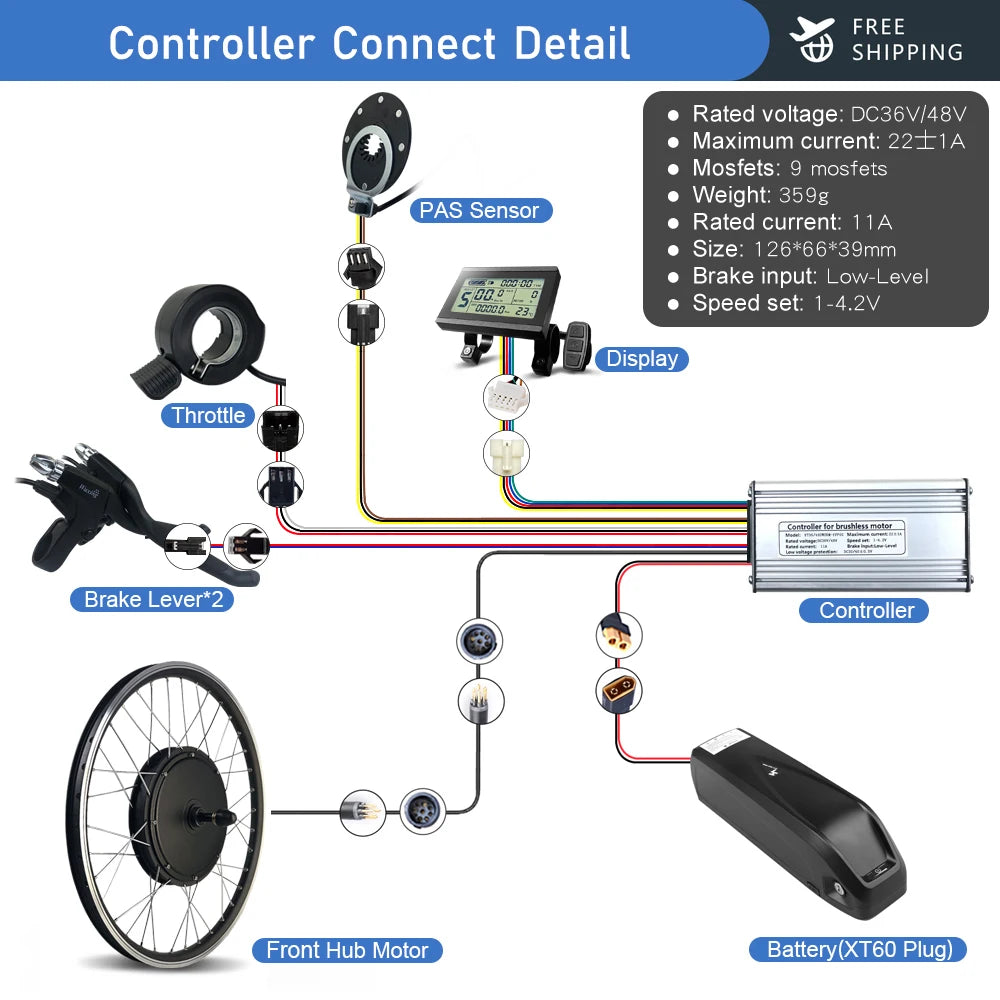

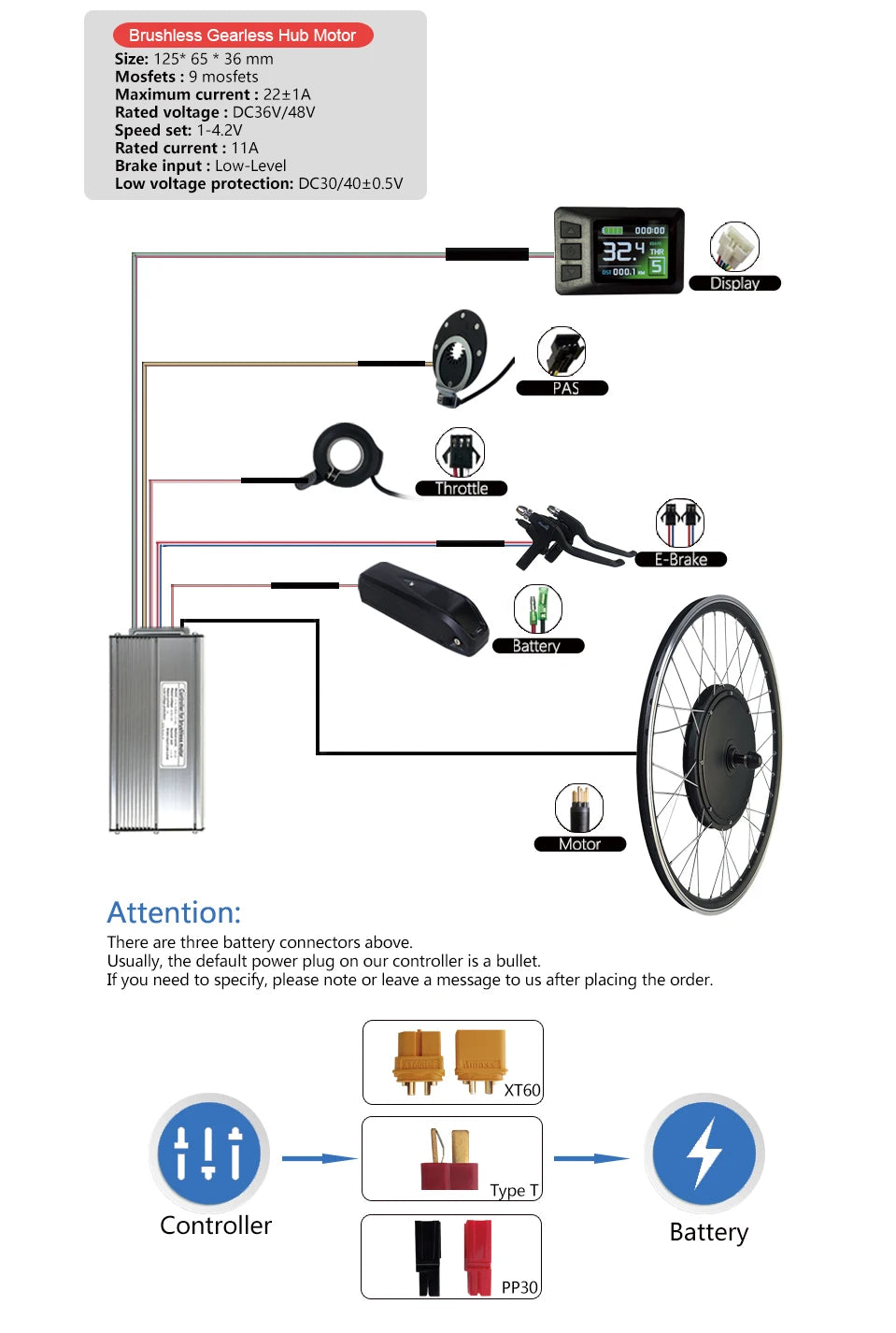

Controller:

●Dimension :125 * 65 * 36 mm

●Weight :450g

●Cable length :all about 10-13cm

●Mosfets:9 mosfets

●Maximum current :22±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Rated current :11A

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

130X Throttle (Default):130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:Wire length:Wire length:Wire length:180cm(SM)

●Weight :100g

●Waterproof :Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

●Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

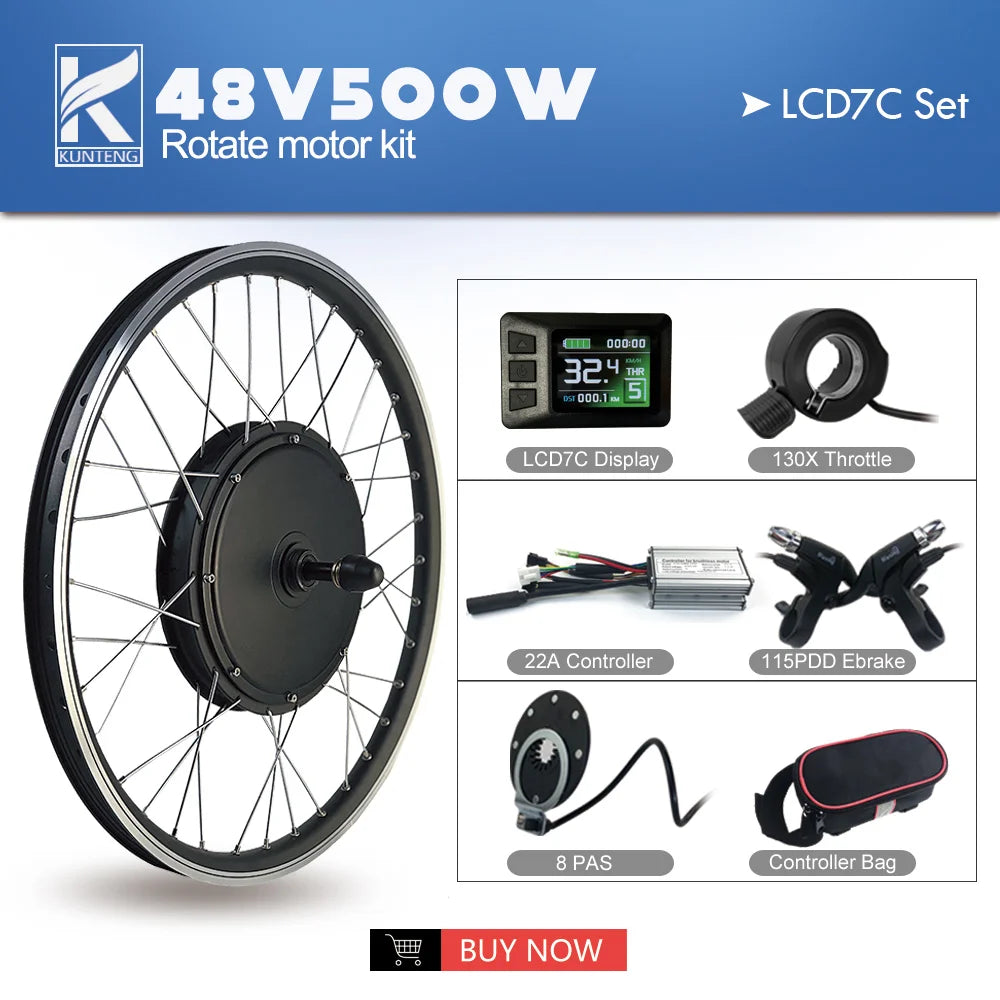

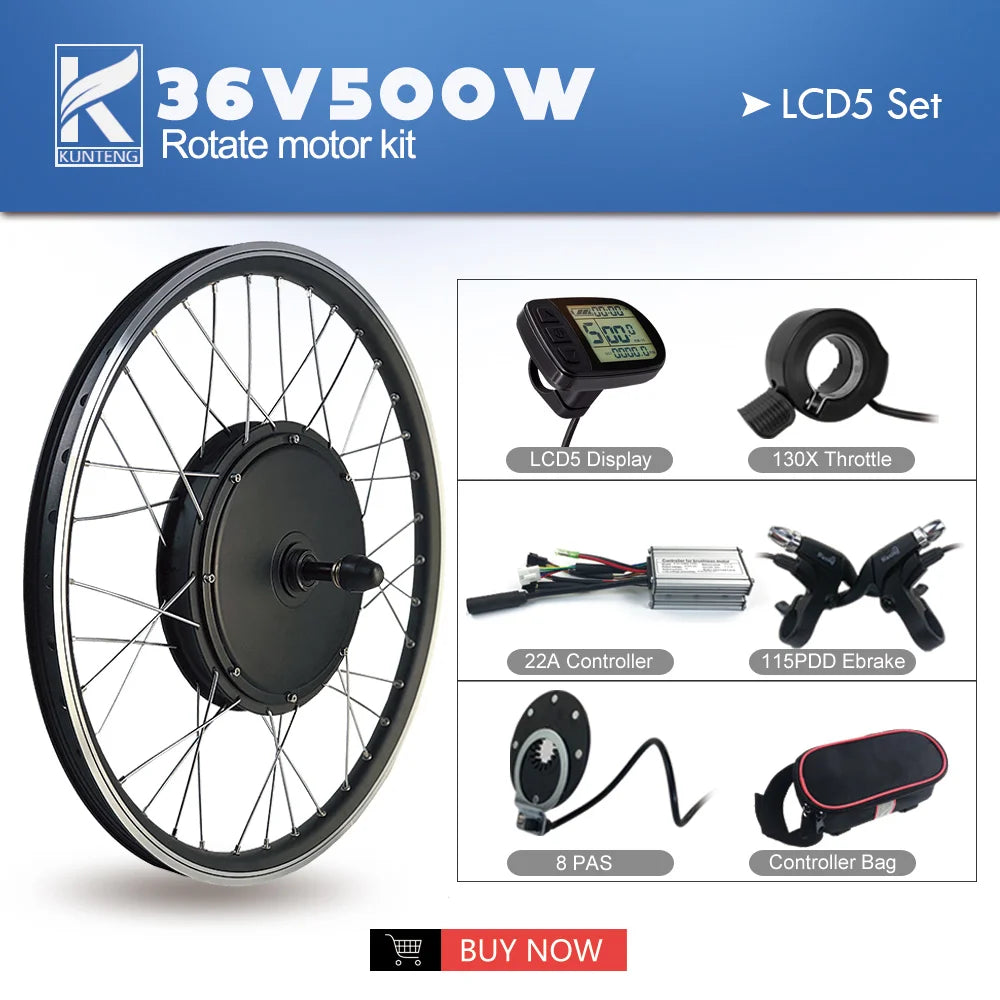

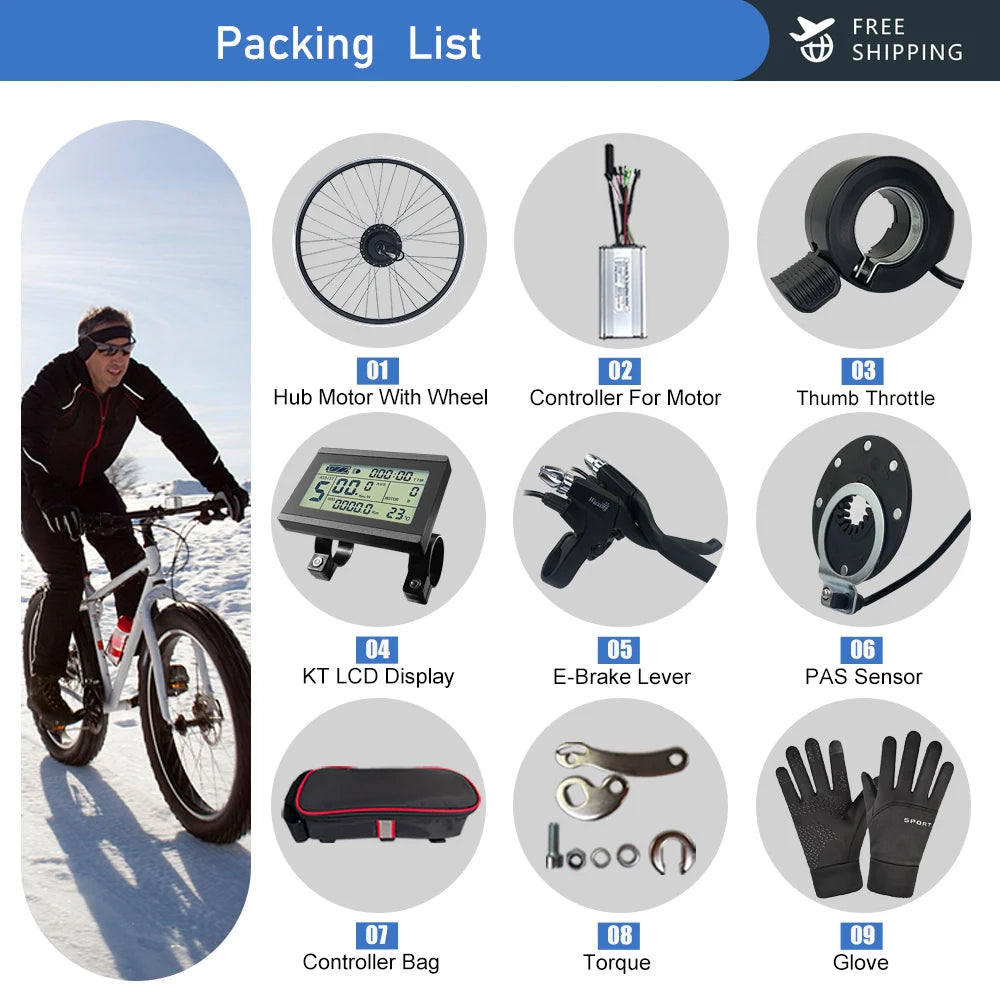

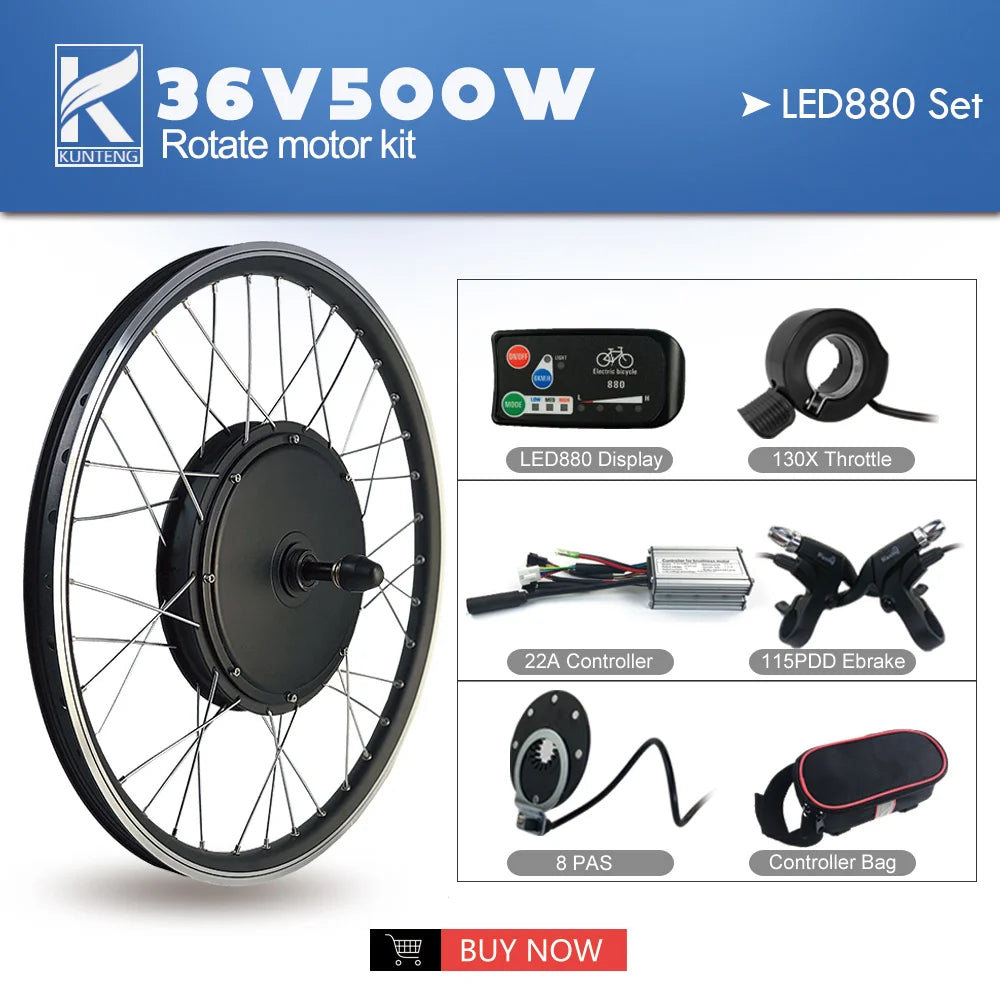

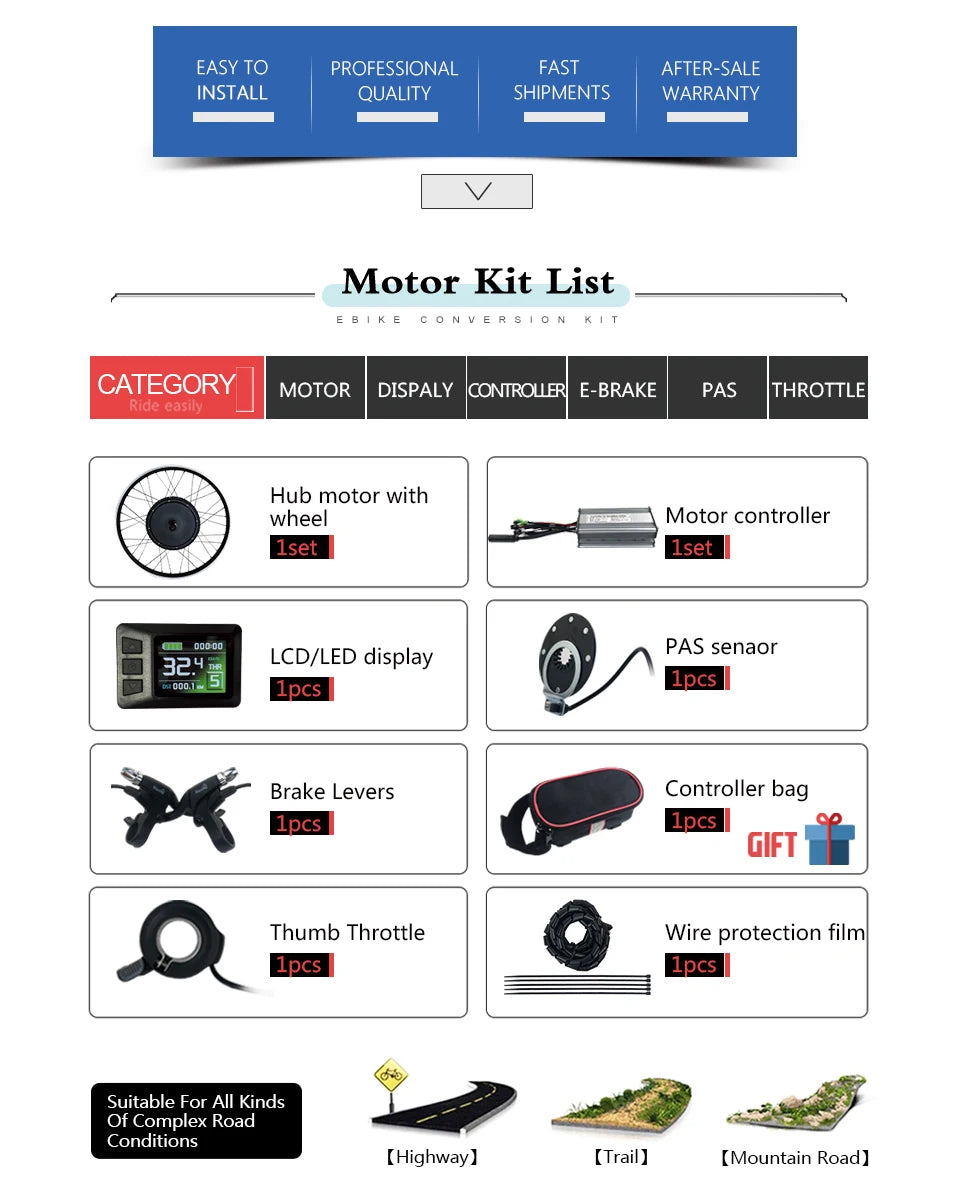

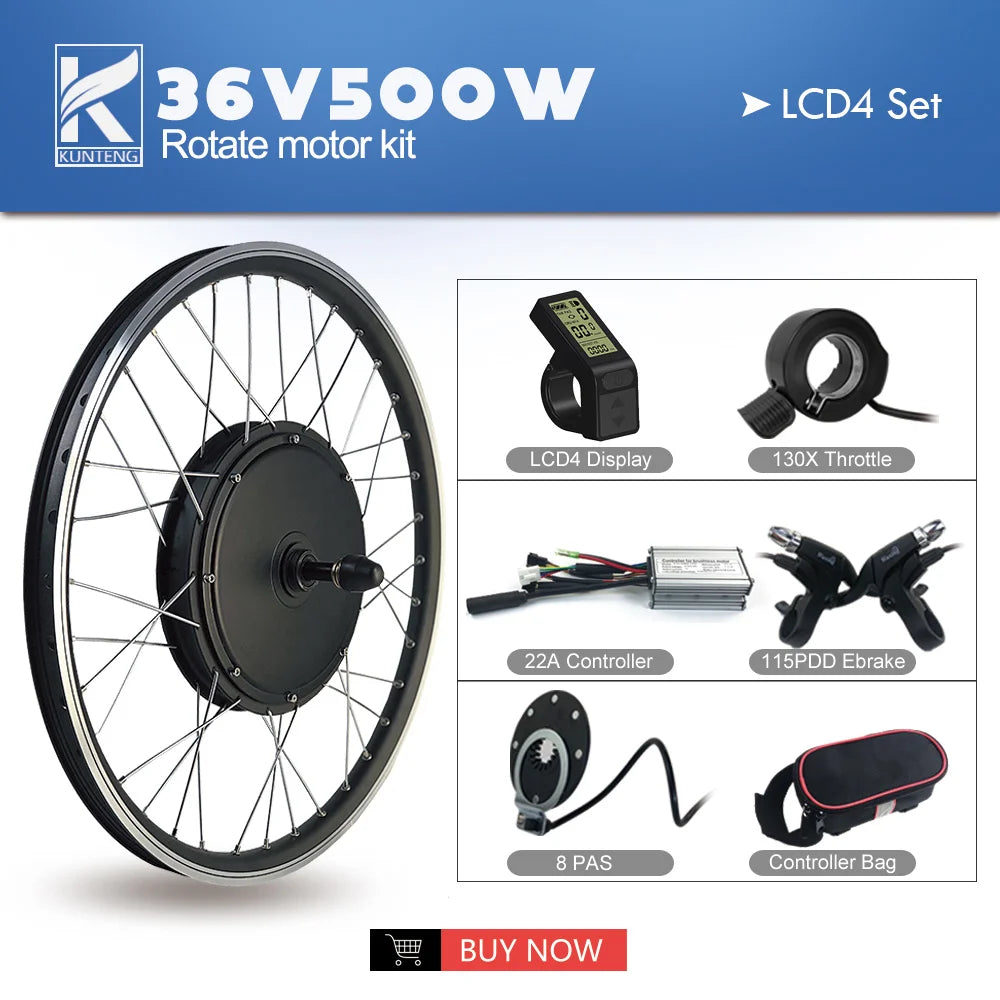

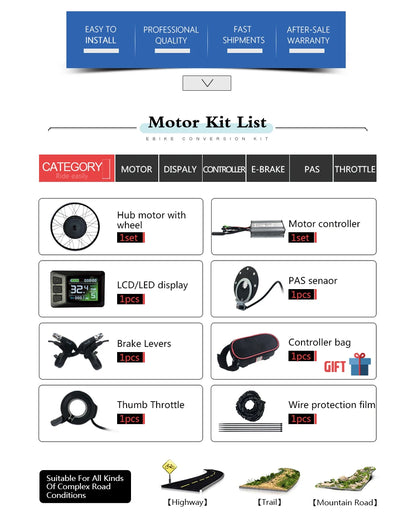

【Packing List】

①500W rear rotate wheel x1 (without tire)

②22A controller x1

③Display and manual x1

④Throttle x1

⑤Power Cut-off Brake Levers x1

⑥PAS sensor x1

⑦Zip ties and Protection line x1

⑧Motor extension cable x1

⑨Controller bag x1
